Partition Frame
Calsi Frame GI frame partition system is non-oad bearing, simple to use construction technique can be used in commercial, institutional, industrial and modern office.
The system has been designed to cover all application of partition with simple profile of metal frame of high quality steel and galvanizing, thus enabling architect and interior designers and contractor to execute the project at ease.
Suitable for gypsum board, plywood, cement sheet, calcium silicate board and other building material used for partition .
Technical Specification
CalsiFrames partition system 48mm stud of (flange of 32mm and 34mm) to be placed at 610mmm center of 50mm floor and ceiling channel (equal flange of 32mm)
Material
Galvanized Iron (G.I)
| Width | Length | Thickness | Zinc Coating | |

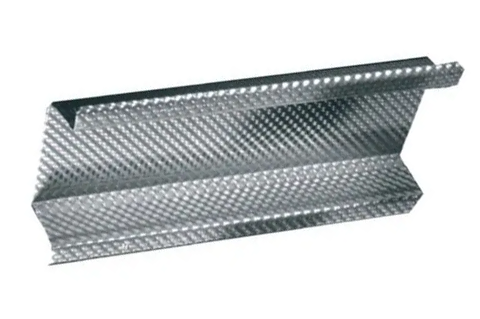

| Stud | 48/70/98mm | 3000mm, 3660mm | 0.50 to 0.60mm | 120gsm, 150gsm |

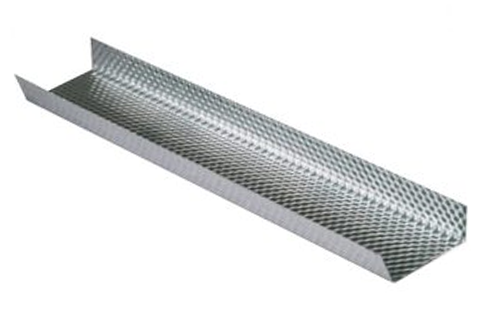

| Floor Channel | 50/72/100mm | 3000mm, 3660mm | 0.50 to 0.60mm | 120gsm, 150gsm |
