Calsi Metal Ceiling & Walls

Lay In , Clip In , Baffles , Linear

Our 20-year legacy have been built on manufacturing ceiling systems, and our metal ceilings have proved to be equally successful. Our innovative and outstanding products and services, constructive dialogue with prospective customers has allowed us to serve in numerous Private and Government sector Projects throughout the Nation.

With our latest Automated High Precision Metal Ceiling Manufacturing Plant, supported by highly qualifed technical specialists offering advice and guidance, We are here to serve our customers with Outstanding Products.

Application

Aesthetics, Practicality and Performance

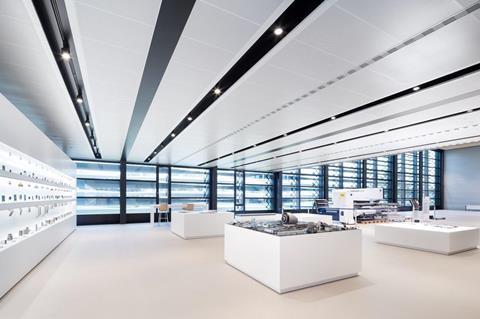

Retail

When customers venture out into the consumer world, they look for more than just good products and services. They also want an agreeable experience. Often ambience and design solutions from Calsi Ceilings help to make a memorable visit.

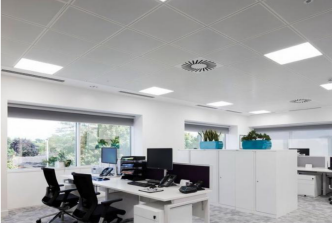

Office

Bright, spacious office environments make for happier, and thus more productive workers! Calsi Ceilings solutions are perfect to liven up any office, thanks to ergonomic design, enhanced lighting, optimised sound absorption and improved sound attenuation.

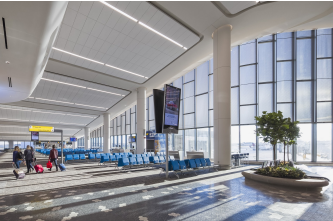

Transport

A pleasant airport lounge or railway station can do a lot to relieve anxiety amongst busy travellers. Calsi Ceilings interior-ceiling solutions soothe by enhancing lighting, absorbing noise and improving overall well- being, whether travellers are queuing at the ticket office or standing on the platform.

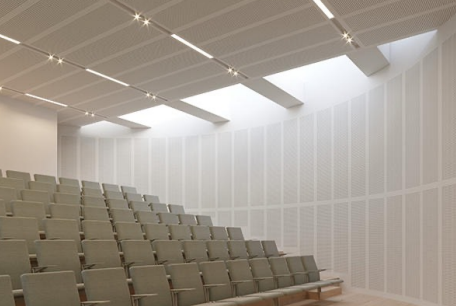

Education

Acoustics present a major challenge to educational institutions. Intelligibility and concentration are acoustical performance demands that our teachers need today, to improve their working conditions as well as their students’. Calsi Ceilings develops solutions that address these concerns.

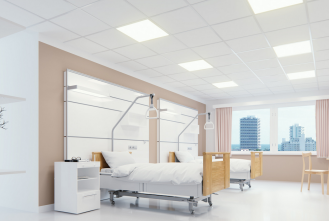

Heatlh

Hygiene and maintenance are a top priority in healthcare environments. A smooth ceiling surface is ideal for treatment rooms and utility areas for regular easy cleaning and Hygiene yet providing long life. Our Powder coat finishes are UV stable, do not support micro-biological growth and are easily cleaned.

Surface Finish

Material

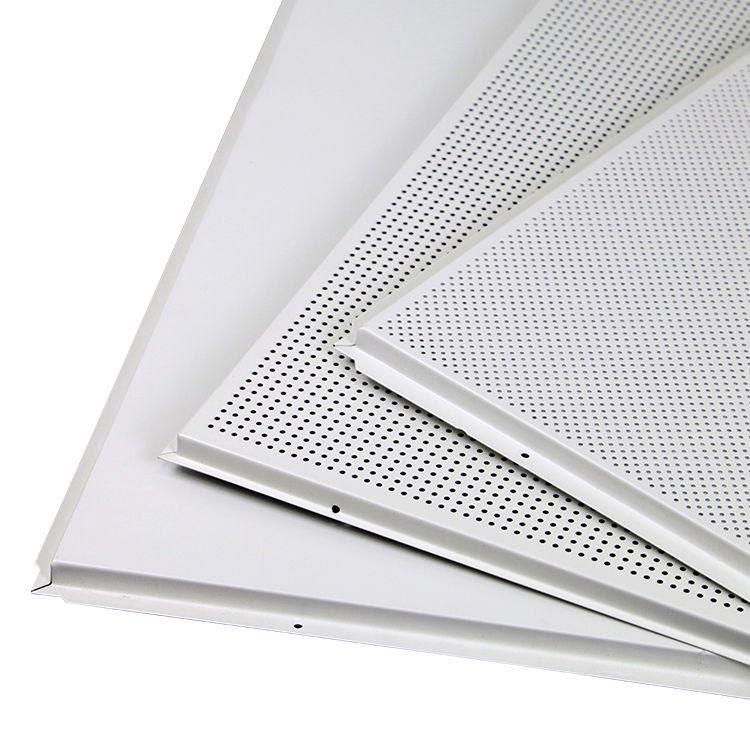

Our Metal Ceiling Tiles are available in Galvanized steel & aluminum.

Powder Coat Finish

The standard finish to metal ceiling panels is a high quality polyester powder coating.
Aesthetically, the powder coat finish to metal products creates a smooth, satin appearance, which conceals its resilient technical qualities.
Electro-statically applied and oven cured, powder coat finishes have a greater film thickness than wet paint applications, and give a more durable and impact resistant surface.

Bio Guard

Bio Guard coating is UV stable, do not support microbiological growth and are easily cleaned. Strongly recommended for healthcae sector.

Features

Fire Resistance
(Non-Combustible)

3.64 to 4.2 kg / per sq. mtr.

Light Reflectance > 85%

100% RH

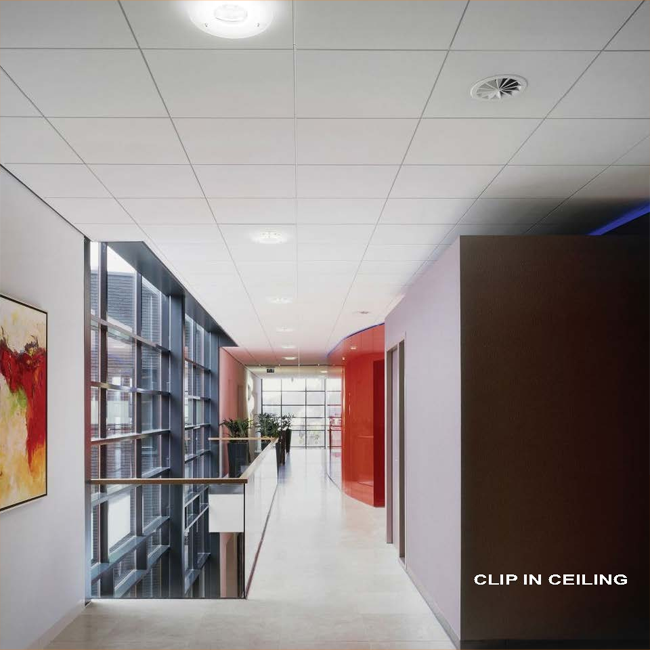

CALSI METAL CLIP-IN

Clip in Metal suspended Ceiling pannels have an esthetic view and fully suitable with Clip in Omega Carrier Profiles, that are hidden after installtion.

When being used with H profiles, provides equally levelled suspended ceiling and saves from labour and consume of accessories.

  • A sealed ceiling design with simple clip- in panels provides easy access to enclosed plenum using the necessary tools
  • Available in multiple squared and beveled edges to create customised visual effects
  • Concealed suspension system offers a smooth appearance
  • Individually replaceble panels

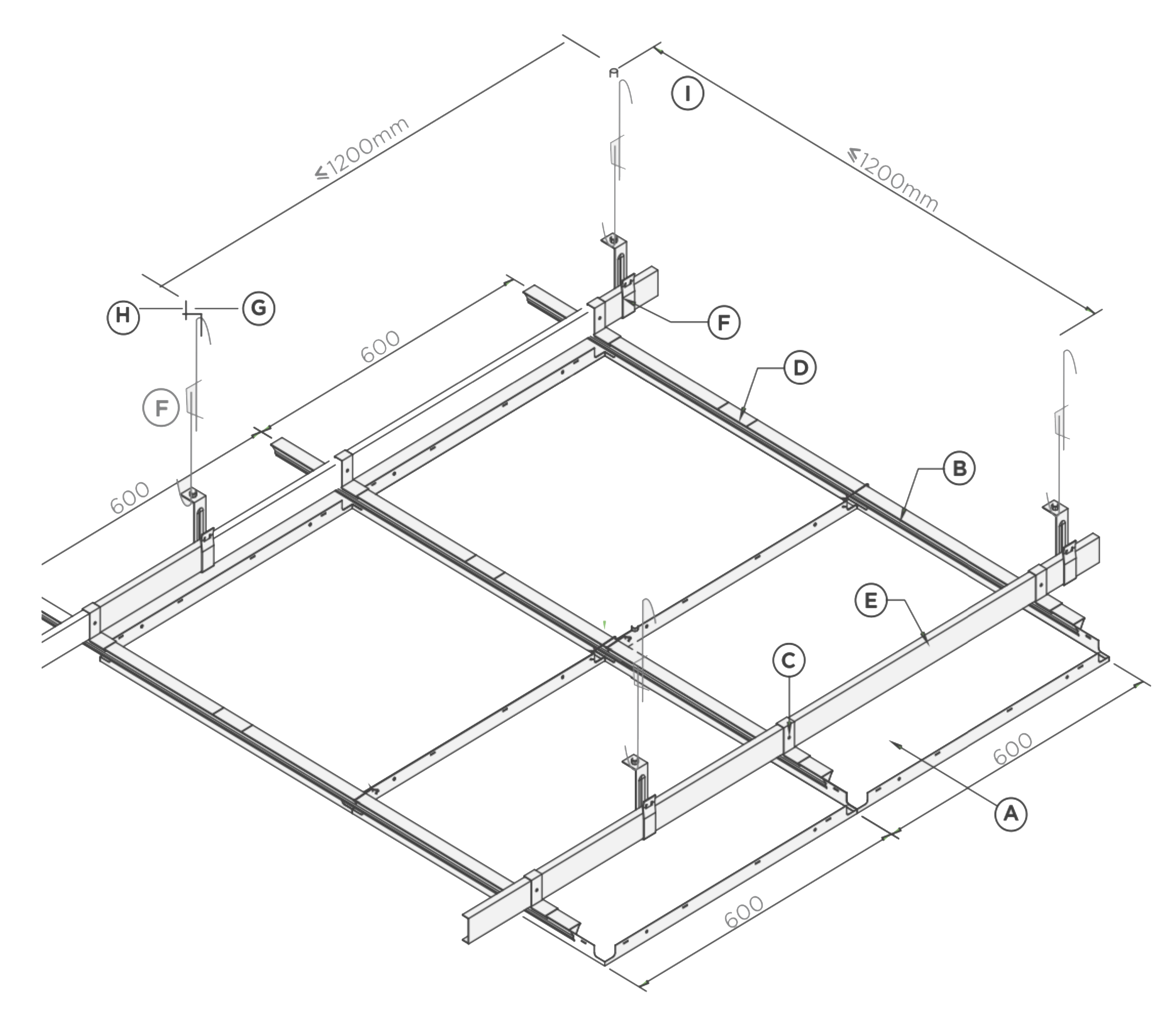

CLIP-IN
A Clip In Panel
B Spring Tee Runner
C Runner Clamp
D Runner Connector
E C-Chhanel
F Threaded Rod
G Soffit Cleat
H Fastener

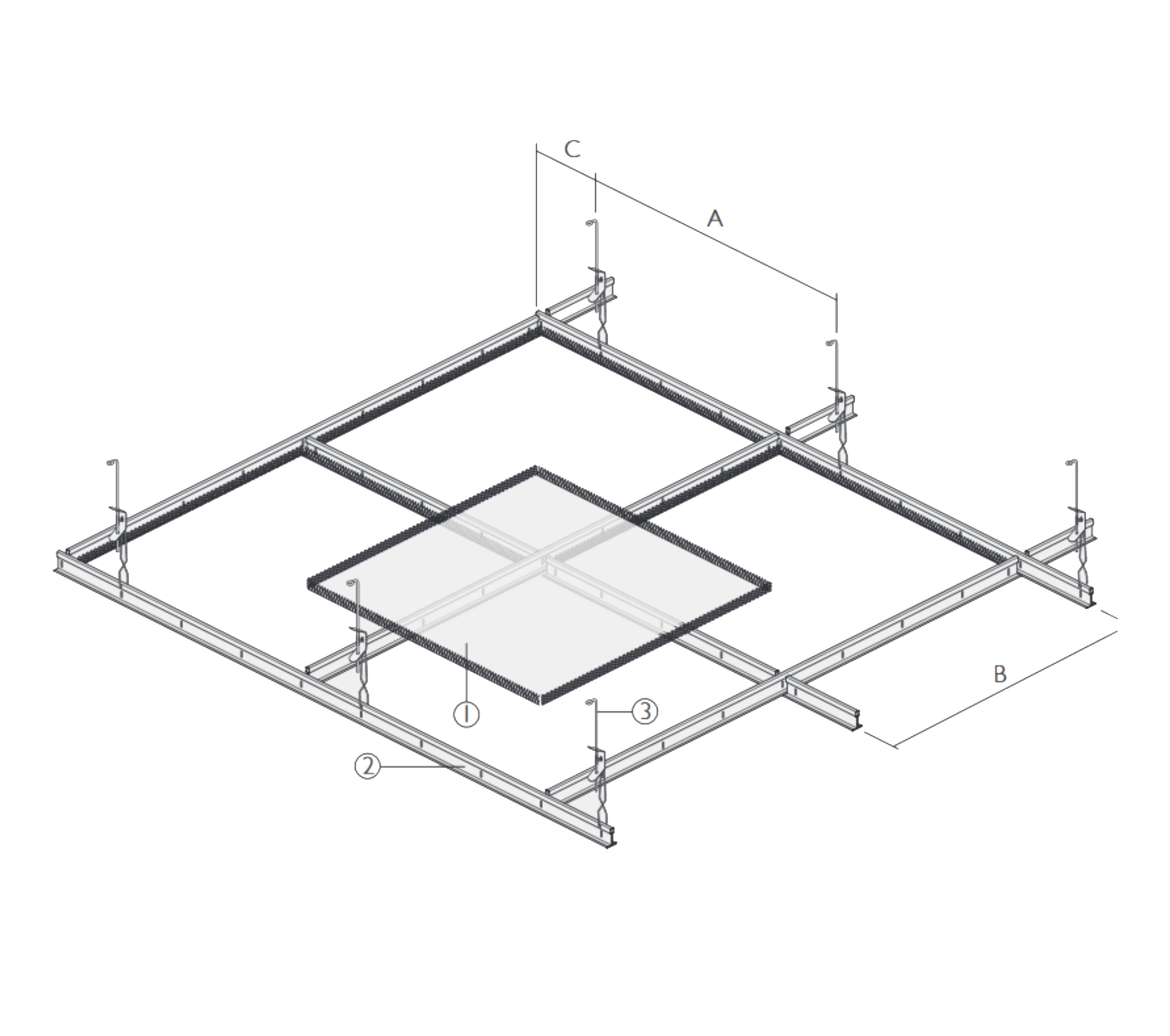

CALSI METAL LAY-IN

For a moderate ceiling budget, Lay-in Metal Ceiling is a premium aluminum alloy or metal ceiling that improves the aesthetic and practical value of any building interior. To satisfy the various demands of architect specification of ceiling design, we offer a variety of perforated designs and color options for our excellent quality Lay-in metal metal ceiling solutions.

1 Lay-In Tile
2 T-Grid
3 Hanger
A 1200mm (Max)

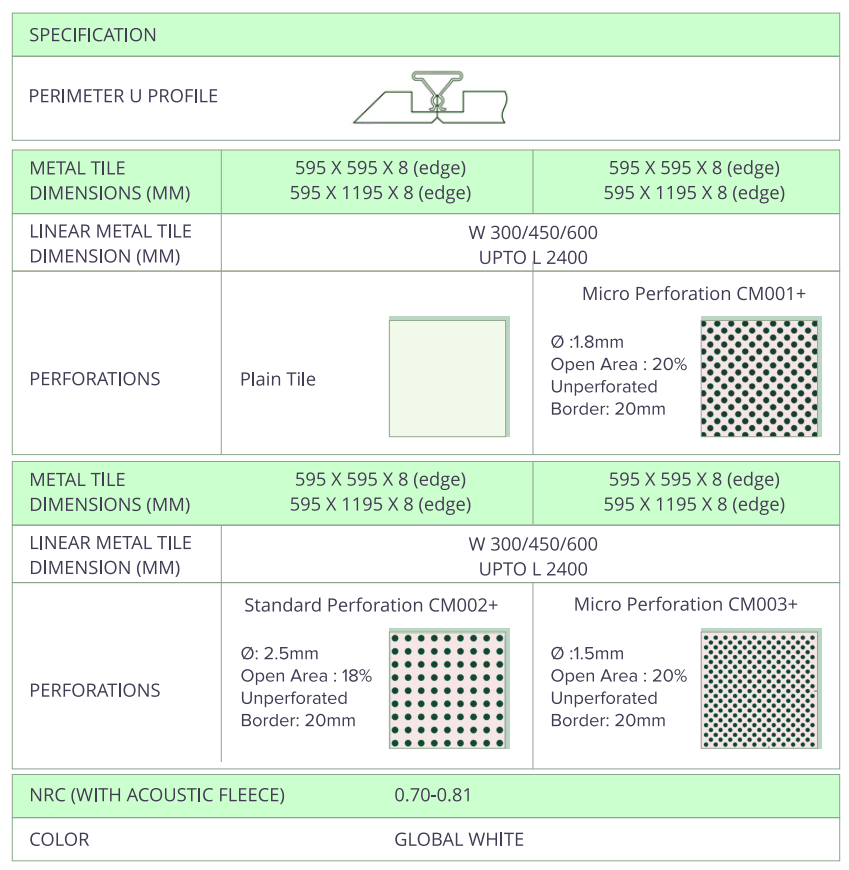

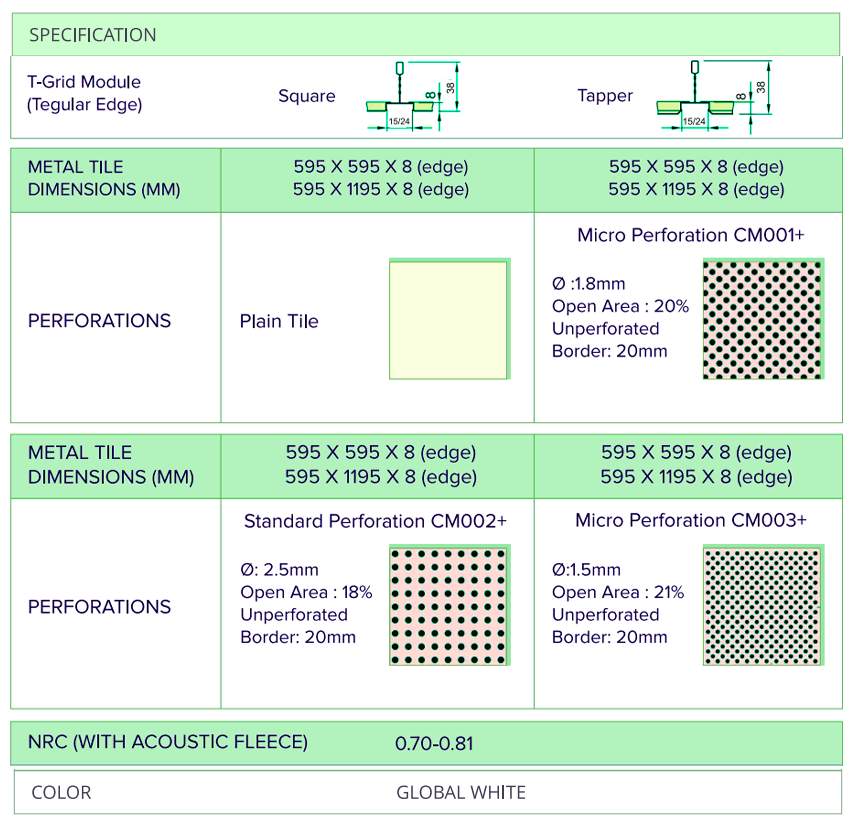

Specification

CALSI METAL CLIP-IN

CALSI METAL LAY-IN

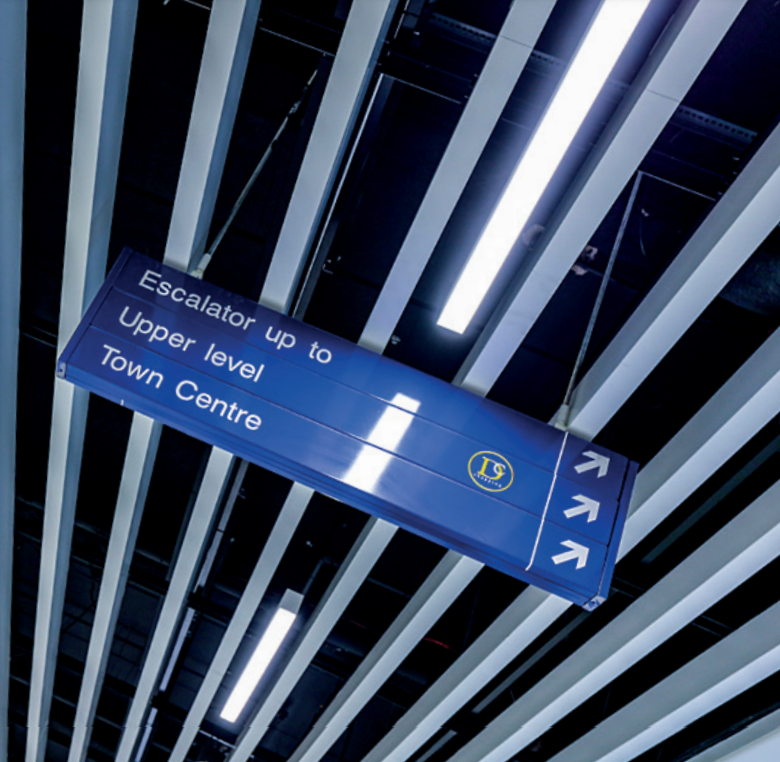

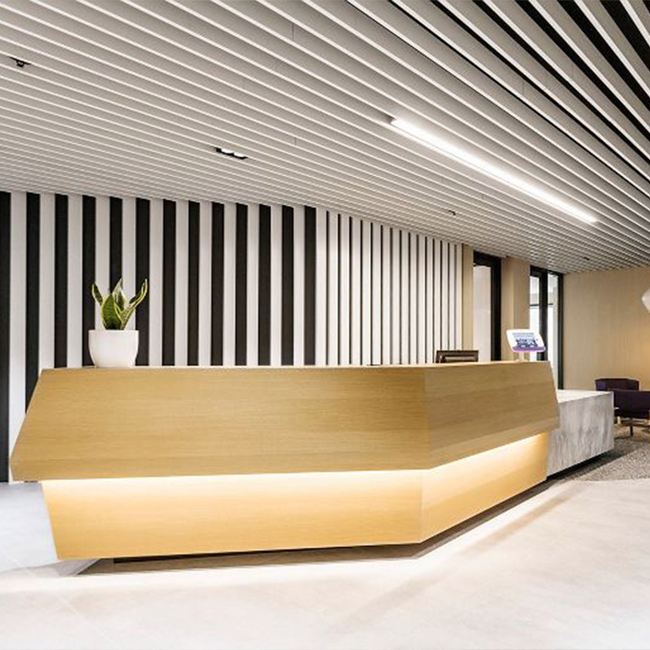

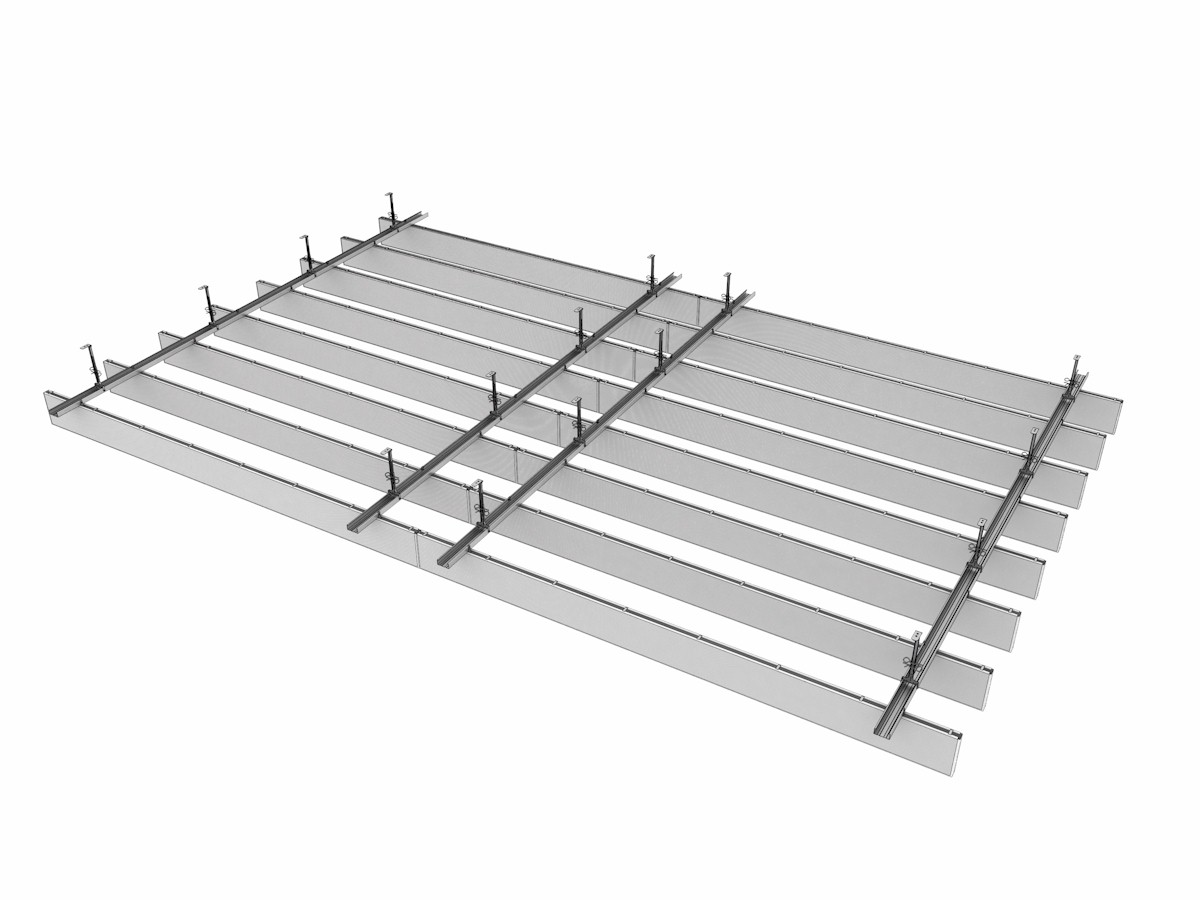

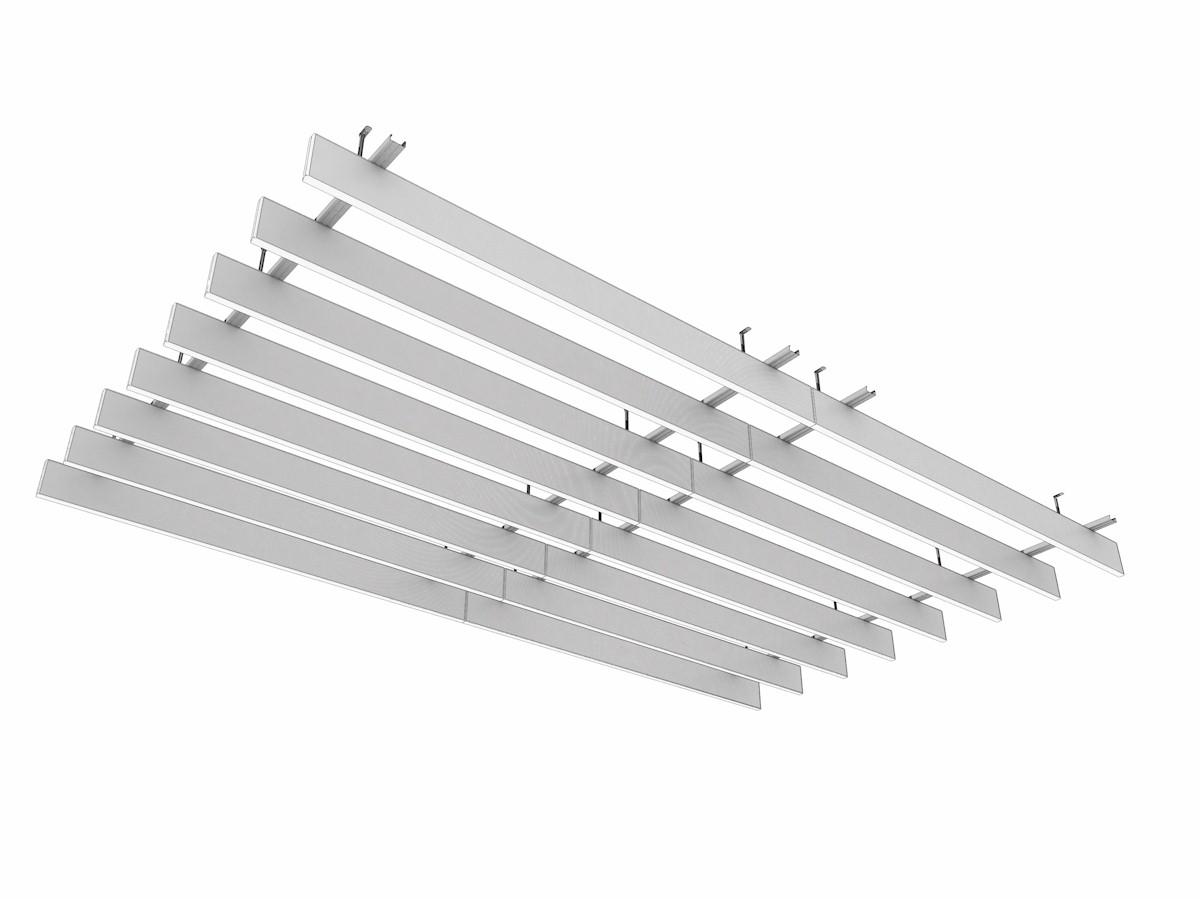

CALSI METAL Baffle Ceiling

Acoustic sound baffle, popularly known as baffle ceiling system, is an open-kind of ceiling construction that provides an aesthetic view and easy to install in the plenum area.

It is a kind of drop out or suspended ceiling system that makes an ideal choice for large places with limited wall spaces. Available in various combinations and materials, it supports construction from wood, aluminum and such materials that reduce the noise level of airborne sound and even ease the task of installation of lighting, sprinklers, PA systems, etc. At BSR Calsi Ceilings, industrial customers will get the best quality of the baffle ceiling systems at rock-bottom prices.

APPLICATIONS

Recreation and Culture: Museums, Places of Assembly, Sales Areas, Shopping Centres, Stadiums, Banks, Cinemas and Theatres, Concert Halls
Workplace: Assembly Rooms, Broadcasting Rooms, Television Studios, Facilities for Meetings, Conventions and Conferences, Stage and Studio Rooms, Common Rooms, Offices.
Transport: Airports, Train and Metro Stations
Education: Library Rooms, Research Rooms & Building
Public Institutions: Court Houses, Government Buildings
Hotels and Gastronomy: Hotels and Resorts, Restaurants and Canteens
Public Areas: Entrance Areas

REQUIREMENTS

Hygiene: Antibacterial disinfectable,disinfectable, Wipeable
Corrosion Protection: Interiors & Exteriors
Fire Protection: Non-Combustible
Acoustics: Acoustics Solution

CLIP-IN
CLIP-IN
CLIP-IN

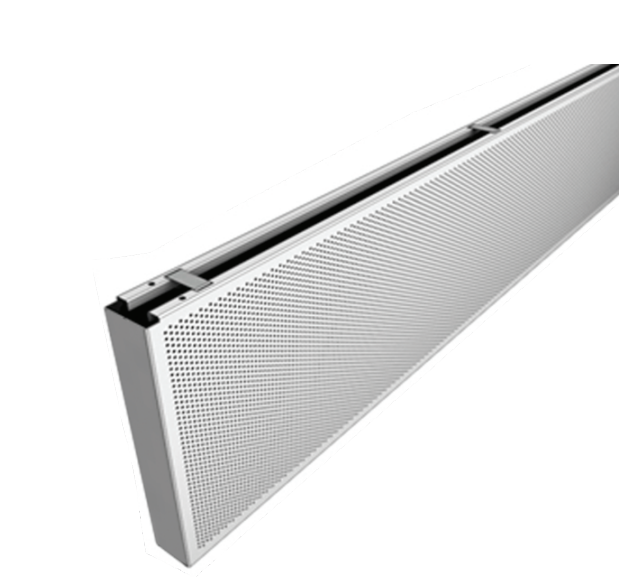

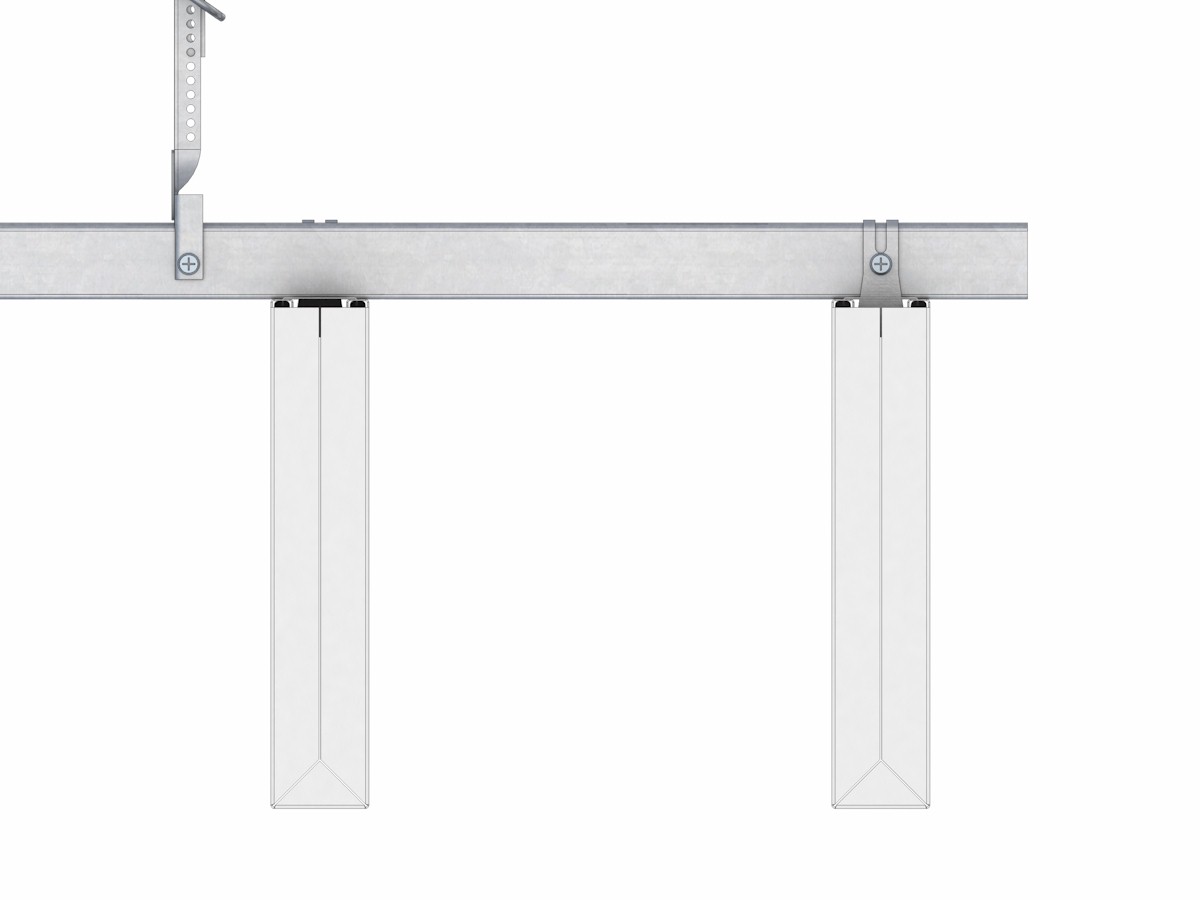

CEILING ELEMENTS

  • Length (L): 300 to 4,000 mm
  • Width (B): 25mm to 100mm
  • Height (H): 70 to 200 mm
  • Perforation Pattern CWO0O1+, CW002+, CWO003+ and Plain Surface Finish Available
  • Finish : Wooden, Global White, Grey & Other finishes are subject to order quantity.
Happy Clients

Our Prestigious Clients

As a manufacturer of false ceiling and acoustical products for the past 20 years, BSR Calsi Ceilings has seen significant growth and development in the industry. We started as a small operation with only a handful of employees,
