CW+ SYSTEMS GROOVED ACOUSTIC WOODEN PANELS
Grooved acoustic panels supplied in form of modular slats, with special sound absorption characteristics, aesthetic finishes and excellent installation results.
CW+ Acoustic Panel system with high technical and aesthetic qualities
Grooved acoustic panels supplied in form of modular slats, with special sound absorption characteristics, aesthetic finishes and excellent installation results.
CW +001
Acoustic slat with grooves on viewed face and holes on the back side
Dimensions
| Groove | 28 / 4 |
| Hole Diameter | ⌀ 8mm |
| Spacing | 24mm |
| Thickness | 15mm, 17mm |
| Edge Matching ( Tounge & Groove) |
|
| Accessories ( Clip ) |
|
| NRC | 0.75 |

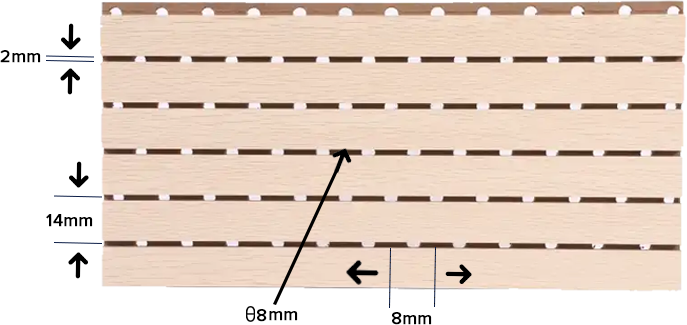

CW +002
Acoustic slat with grooves on viewed face and holes on the back side
Dimensions
| Groove | 14 / 2 |
| Hole Diameter | ⌀ 8mm |
| Spacing | 8mm |
| Thickness | 15mm, 17mm |
| Edge Matching ( Tounge & Groove) |
|
| Accessories ( Clip ) |
|
| NRC | 0.90 |

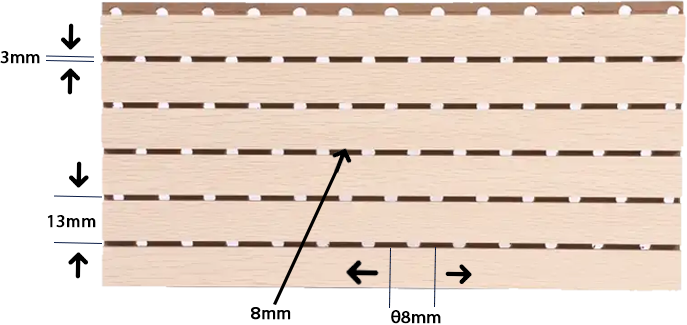

CW +003
Acoustic slat with grooves on viewed face and holes on the back side
Dimensions
| Groove | 13 / 3 |
| Hole Diameter | ⌀ 8mm |
| Spacing | 8mm |
| Thickness | 15mm, 17mm |
| Edge Matching ( Tounge & Groove) |
|
| Accessories ( Clip ) |
|
| NRC | 0.95 |

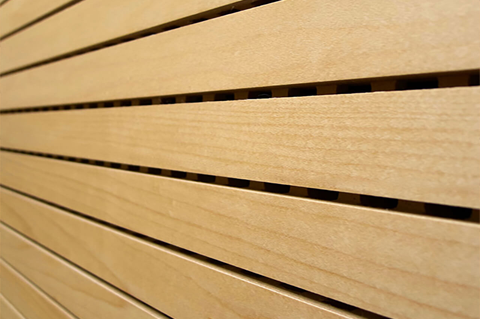

Grooved slat system. Excellent acoustic properties. Attractive and modern design. Easy installation. For walls and ceilings.
standard slats measure 2440 x132 mm and 15 &17 mm thick
manufactured on MDF, our panels can be finished with a wide range of wood laminate surface finishes. We also supply accessories to improve the finishes of installations (decorative panels, skirting boards, corner pieces, trims, etc.).

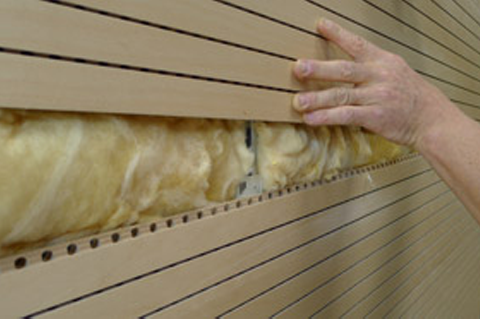

various installation possibilities over wooden battens or metal profiles, with clips or directly attached to the structure. In order to obtain an optimum absorption coefficient, it is necessary to leave a space of at least 30 mm between the back of the panels and the wall, filled with mineral fibre with a density between 30 and 40 kg/m3.
American Walnut
Natural Teak
Baverian Beech
Cherry Oxford
Mangfall Beech
Ice Beech
Silver Gray
White
Please Contact us for more finishes and surface finish

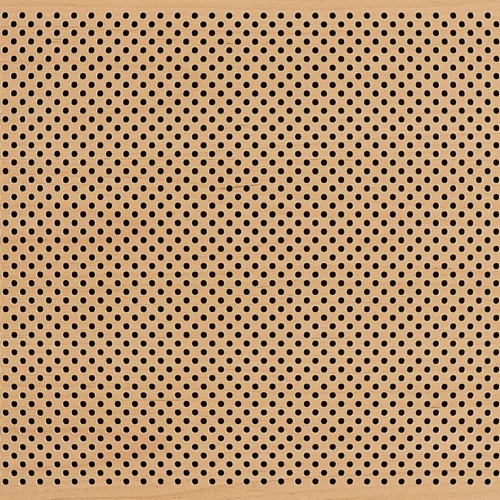

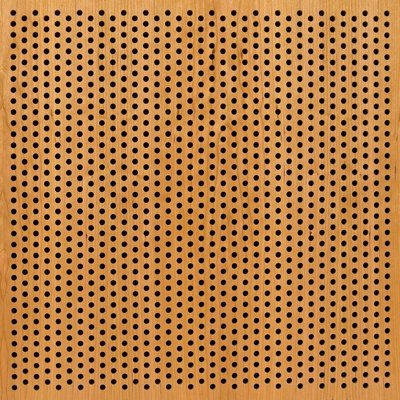

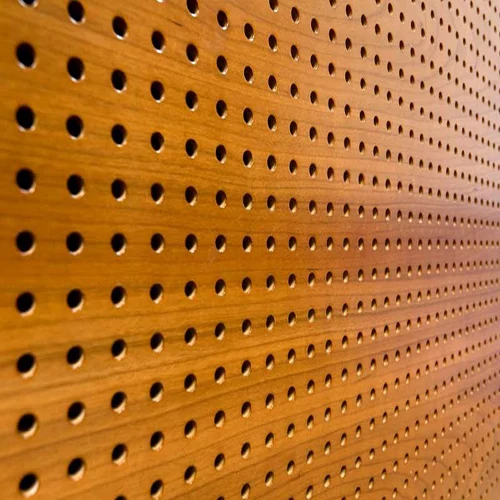

Perforated Ceiling Tiles are avilable in a variety of standard hole patterns, which can achieve upto 0.85 NRC Values. Hole sizes range from 5mm — 10mm diameter and 16mm or 32mm pitch. We can also create customized perforated acoustic ceiling tiles to meet any project requirements and can route to custom sizes and provide different edge details. They are often used in hotels, hotel, home theater, prisons, broadcasting studios, gymnasium and multifunctional rooms, music rooms, restaurants and nightclubs, training rooms, and so on.
The structure of perforated ceiling tiles is simple. The substrate is MDF, with melamine or veneer on both sides and the veneers can be painted. Then after perforations are done, acoustic fleece are attached to the back of the panel.
| Thickness | 12mm size 600x600mm, 600x1200mm |
| Acoustic NRC | 0.60 to 0.80 |
| Hole Size | 4/6/8mm |
| Weight | 8 kg/m2 |
